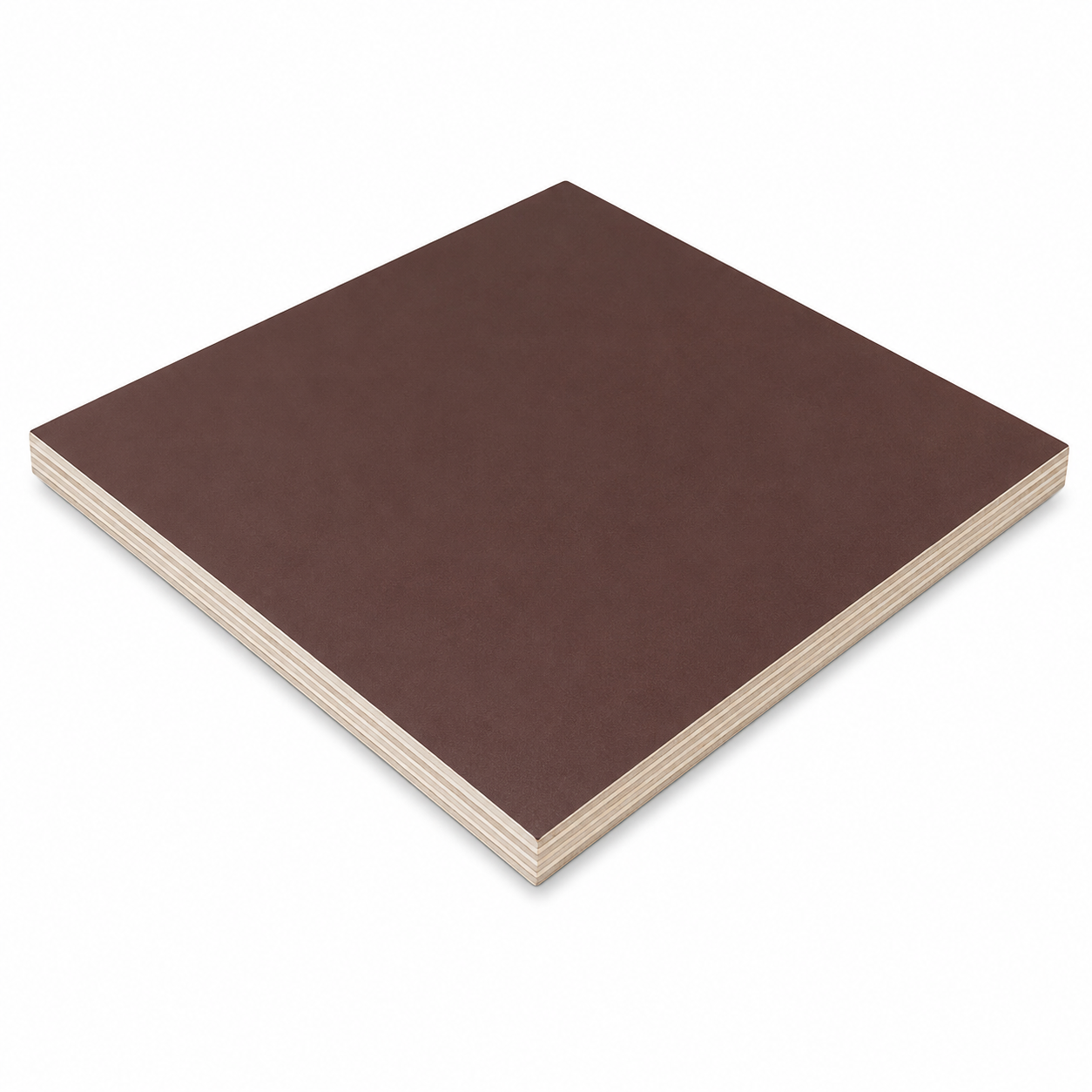

Paper Based Industrial Laminates
Paper Hylam, also widely known as Paper Bakelite, Paper Hylam Sheet, Paper Bakelite Sheet, Paper Phenolic Laminates, Phenolic Paper Laminate, Paper Base Laminate, Paper Laminate Sheet, or Paper Laminate Board, is a cost-effective, high-performance thermoset material. It is manufactured by impregnating multiple layers of high-quality cellulose kraft paper with phenolic resin and bonding them under controlled heat and pressure. These Paper Industrial Laminates excel in electrical insulation applications and serve as reliable Electrical Insulation Sheet, Electrical Insulation Board, and Phenolic Insulation Sheet for diverse industrial needs.
Specifications
Key Features
- Good electrical insulation properties
- Excellent dimensional stability
- Easy machinability
- Low water absorption
- Cost effective industrial solution
Key Benefits
- Excellent Electrical Insulation – High dielectric strength up to 12–30 kV/mm depending on grade, with superior insulation resistance and good arc resistance.
- Good Mechanical Strength – Adequate flexural and tensile properties for non-structural insulation roles.
- Low Water Absorption – Especially in higher grades like P3, ensuring stability in humid and tropical environments.
- Easy Machinability – Easily punched, drilled, milled, and fabricated; punching grades available.
- Thermal Resistance – Continuous service up to 90–130°C (Class E/B insulation rating).
- Lightweight – Density ~1.3–1.4 g/cm³, reducing overall system weight.
- Flame Retardant Options – FR grades (FR-1/FR-2) available, meeting UL 94 standards for enhanced fire safety.
- Cost-Effective – Outstanding dielectric performance at a lower cost compared to fabric-reinforced laminates.
Common Applications
Electrical & Power:
- Switchgear panels, busbar supports, and terminal boards
- Transformer insulation and coil formers
- Distribution boards and fuse holders
Electronics:
- Insulating washers, spacers, and circuit board substrates
- Potentiometer fixtures and PCB backing materials
- Meter parts and relay components
General Industrial:
- Bobbins, chokes, and control panels
- Low-voltage insulation parts and jigs & fixtures
- High-humidity electrical components and cost-sensitive insulating applications
Why Industries Prefer This Product
Paper Phenolic Laminates deliver reliable performance where excellent electrical properties and economy are prioritized over extreme mechanical toughness. With outstanding dielectric strength, easy machinability, and availability in multiple grades (P1, P2, P3) aligned with IS 2036, IEC 60893, and NEMA LI-1 standards, they are the go-to material for electrical insulation across switchgear, transformers, and distribution systems.
Looking for a Reliable Manufacturer, Supplier & Exporter in India?
Yes — you've come to the right place.
We are a trusted Paper Hylam and Paper Bakelite manufacturer and exporter based in Gujarat, India, specializing in premium-quality Phenolic Paper Laminates (Paper Industrial Laminates). Whether you need standard P1, P2, or P3 grade sheets or precision custom-cut components, we deliver exactly what your electrical and industrial projects demand.
Our Expertise Includes:
- Custom Cutting & Punching – We cut and punch Paper Hylam pieces to your exact specifications with high dimensional accuracy.
- Grade Recommendation – Expert guidance on selecting the right grade: P1 for general-purpose, P2 for power electrical applications, or P3 for high-voltage and high-humidity environments.
- Material Weight Calculations – Precise weight calculations for any sheet size and thickness to support your costing, logistics, and inventory planning.
From small prototypes to large industrial orders, we support clients across India and global markets with consistent quality, competitive pricing, and fast turnaround.
- ✓ Local Gujarat Supplier
- ✓ PAN India & International Export
- ✓ Custom Fabrication as per Drawing
- ✓ Technical Support & Grade Selection
Frequently Asked Questions
Q1: What is the difference between Paper Hylam and Fabric Hylam? +
Paper-based grades prioritize superior electrical insulation and lower cost, while fabric-reinforced versions offer higher mechanical strength and wear resistance. Choose paper for pure insulation needs.
Q2: Which grade is best for high-voltage applications? +
Paper P3 Grade provides excellent electrical properties, low moisture absorption, and suitability for high-humidity or tropical conditions — ideal for high-voltage applications.
Q3: Can Paper Phenolic Laminates be used in humid environments? +
Higher grades (P2/P3) perform well with low water absorption, but proper sealing or design considerations are recommended for prolonged exposure.
Q4: What thicknesses and sizes are available? +
Standard thicknesses range from 0.5 mm to 50+ mm. Common sheet sizes include 1220 × 1220 mm and 1220 × 2440 mm; custom sizes and fabrication are available on request.
Q5: Are these materials flame retardant? +
Yes, FR grades (e.g., FR-1/FR-2) meet UL 94 standards for enhanced fire safety in electrical applications.
Q6: Do you provide custom machined parts? +
Yes, as a full-service Paper Laminate Manufacturer, we offer CNC machining, punching, and custom components tailored to your drawings and specifications.
Q7: What standards do your Paper Hylam Sheets comply with? +
Our products comply with IS 2036, IEC 60893, NEMA LI-1, and other relevant industry standards, emphasizing safety, reliability, and value.
Q8: What is the continuous service temperature for Paper Hylam? +
Continuous service up to 90–130°C depending on the grade, classified as Class E or Class B insulation.
